AllPondSolutions 18000L Pond Box Filter Pond Pump 36w UV, Hose / Clips

The AllPondSolutions 18000L Koi Pond Filter System is a complete box filtration system designed to run pond water through a variety of filter media and fine and coarse foams to keep your pond looking crystal clear.

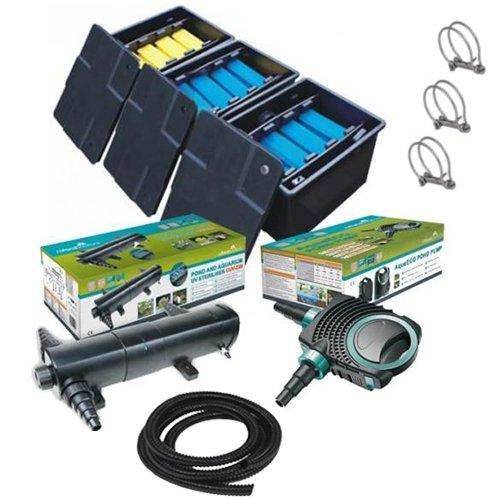

This complete system includes the CUV-236 36w sterilizer which attaches to the side of the CBF-350C filter box (or can be positioned close by) and the AquaECO 10000 litres per hour pond pump. The full pond kit also includes 5x double wire clips and 10 metres of 38mm flexible hosing.

Filter Operation

The filtration system uses a variety of filter media distributed amongst three separate bays allowing you to filter high volumes of water.

Each of the 3 bays has 4 different stages of filtration (see below). The first two bays come complete with eight (8) blue coarse filter foams, the remaining bay has four (4) yellow fine filter foams included.

1) Firstly, the water passes through the filter media bay (stocked with media of your choice)
2) Then the water is guided through high-quality Japanese matting;
3) After matting, the water will flow through the filter foams provided;
4) The last section of each filter bay has additional room for filter media.

Please note the filter must be placed on the edge of the pond as the clean water flows straight back into the pond not an outlet pipe

Features

Filter Bays x 3
Clip-on Lids x 3 for Easy Access to each Filter Bay
2 x Inlet stepped hosetails fits hose size: 20, 25, 32 & 38mm
2 x Outlet Pipes one fitted 70mm and 1 stepped fits 38mm and 50mm Pipe
3 x Waste Outlet for each Bay (Simple Draining of Water Waste)
1 x Temperature Dial Built into Lid
1 x Water Level Indicator Built into Lid (Blockage / Cleaning)
8 x Blue Coarse Filter Foams
4 x Yellow Fine Filter Foams

Specifications

3 x Japanese Matting supplied (Dimensions: 440 x 230mm - 40mm thickness / 17.3" x 9.1" - 1.6" thickness)
20 x 1.75" / 44mm Bio Balls (Approx)
Maximum Flow Rate: 10000L/H
Suitable for Ponds with Heavy Stocked Koi up to: 10000 Litres
Suitable for Ponds with Small Mix of Fish and Koi up to: 14,000 Litres
Suitable for Decorative Ponds up to 18000 Litres volume
Total Dimensions: 1260 x 520 x 390mm / 49.6" x 20.5" x 15.4"
Bay Dimensions: 410 x 520 x 390mm / 16.1" x 20.5" x 15.4"

AquaECO 10000 POND PUMP

Features

Power saving energy efficient pump
Pump manufactured using high-quality durable ABS particles
Shaft manufactured using high-quality rust-proof ceramics
Stepped hosetails fits hose size: 20, 25, 32 & 38mm
Submersible use only

AquaECO 10000 Specifications

Height Max: 5 Metre
Flow Rate: 10000 L/H
Power: 80w
Voltage: 240v
Dimensions: 310 x 310 x 165mm / 12.2 x 12.2 x 6.5
Cable Length: 10 Metre

CUV-236 UV STERILISER

Specifications

Power: 36W
Suitable for Pond sizes up to 20,000 Litres
Through Flow Sterilisation at 6000 L/H
Length of UV Case 54 cm / 21.3"
UV Bulb Included (1 x 36w)
Max Pressure(bar) 0.3 90 %
Power Cable 5m Length
Inlet & Outlet Adapter 0.75", 1", 1.25", 1.5" / 19mm, 25mm, 32mm, 38mm

Please Note : In compliance with UK electrical regulations, these pond pumps are supplied without a fitted UK plug. A suitable plug or outdoor switch box must be purchased separately.
