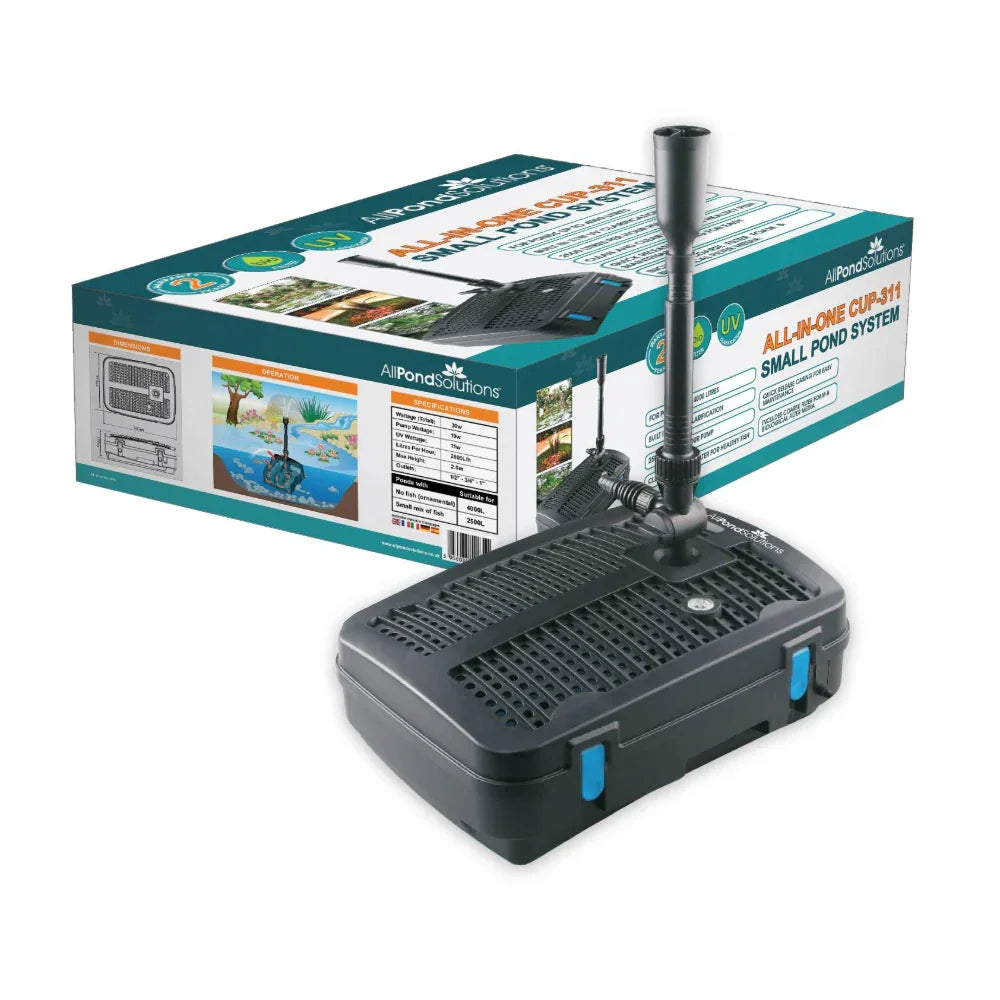

AllPondSolutions 2,500 L/H All-in-One Pond Pump, Filter & UV Clarifier with Fountain

The AllPondSolutions All-in-One CUP-311 System combines everything required to to run a healthy algae-free small to medium sized pond. Designed as a single smart unit with a single power cable it allows for a much easier installation compared to a standard pond set up.

The CUP-311 includes a built-in 11w UVC Lamp and filtration system combined with a 2500 litres per hour pump eliminating the need to purchase an external filtration system, which can be difficult to integrate around the landscaping of a small pond.

The included filtration media includes a large coarse filter foam that water must pass through first and also three filter media baskets, two are filled with ceramic biological filter media and the last one with K1 filter media. Alternatively you could change the included media inside these baskets for an alternative pond filter media of your choice.

Access to the inside of the CUP-311 is extremely easy thanks to the four clips positioned 2 on opposite sides of the unit. Once these are removed you have full access to all filter media areas for cleaning and maintenance. Removing the pump and steriliser is achieved by unscrewing 3 screws, allowing these parts to be removed completely clear of the CUP-311 base.

This system is also supplied with a high-quality fountain attachment set comprising of three different fountain attachments, ideal for a variety of displays in your pond. The set also includes a splitter, enabling you to divert water to a waterfall, for example, and both the splitter and fountain are flow-rate adjustable. This gives you total control over the strength of your fountain and the volume of water diverted from the unit.

Specification

• Flow rate: 2500L/h
• Height Max: 250cm
• Max Depth of Use: 200cm / 78
• Max Depth for Fountain Use: 525mm / 20
• Dimensions: 380 x 275 x 130mm (L x W x H)
• Cable Length: 10M
• Pump power: 57w
• UV power: 11w
• Voltage: 220-240V
• Outlet fits: 12, 20 and 25mm hose / 0.5, 0.75 and 1
• For use in ponds up to 4000L (Ornamental)
• For use in ponds up to 2500L (Small mix of fish)
• Free 24 Month Warranty

Operation
1)Pond water is pulled through the casing of the system directly through the coarse filter foam.
2)Before entering the UV the water must pass through the ceramic biological media baskets.
3)The water is then passed over the 11w UV Light
4)Leaves via the supplied fountain and / or external feature, or simply back into your pond.

Features

• For use in ponds up to 4000L (Ornamental)
• For use in ponds up to 2500L (Small mix of fish)
• Water pump Included
• UV sterilizer Included
• Pond filter Included
• Water fountain set included (3 different heads)
• Water fountain has angle-adjustment Feature
• Coarse filter foam, ceramic stones and K1 media included
• Adjustable flow-rate T-connector included

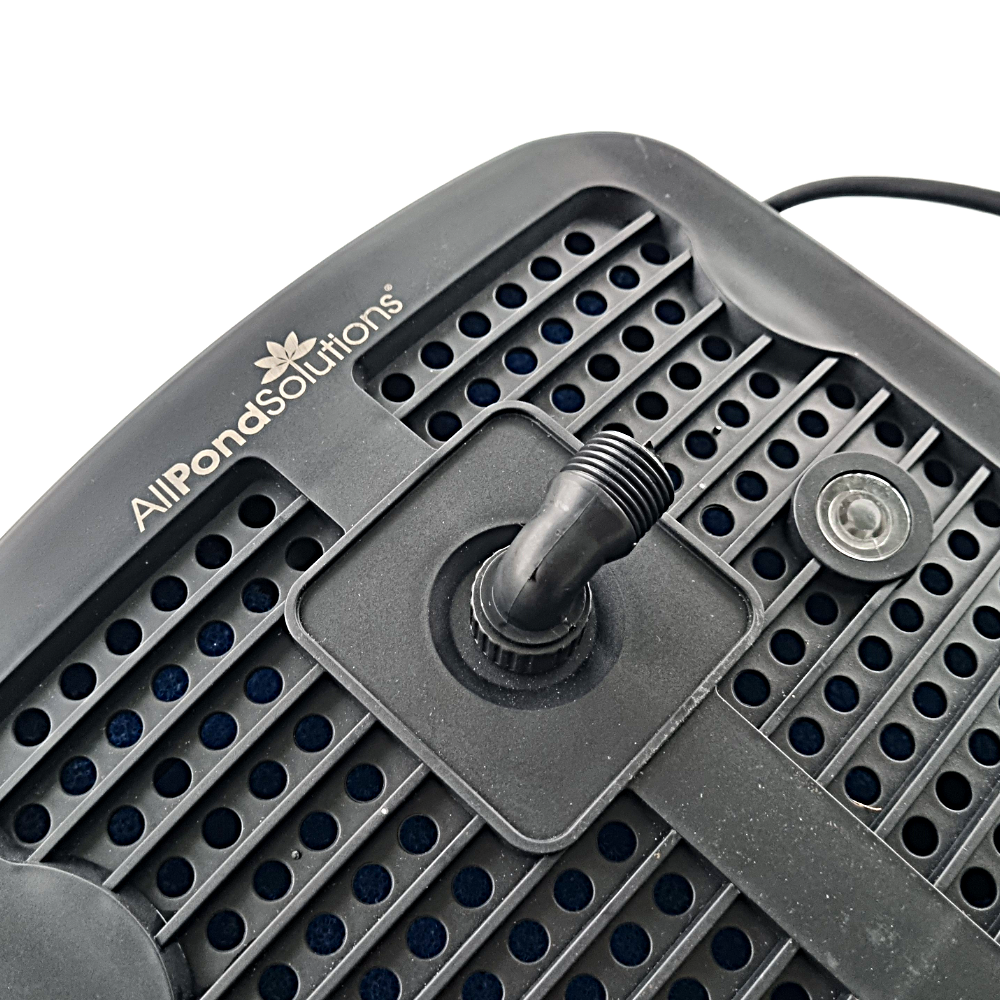

• UV On/Off light indicator on top of casing
• Case guards stop debris larger than 7mm entering the unit.
• Instruction manual in English, French, German, Spanish and Italian

Please Note : In compliance with UK electrical regulations, these pond pumps are supplied without a fitted UK plug. A suitable plug or outdoor switch box must be purchased separately.
