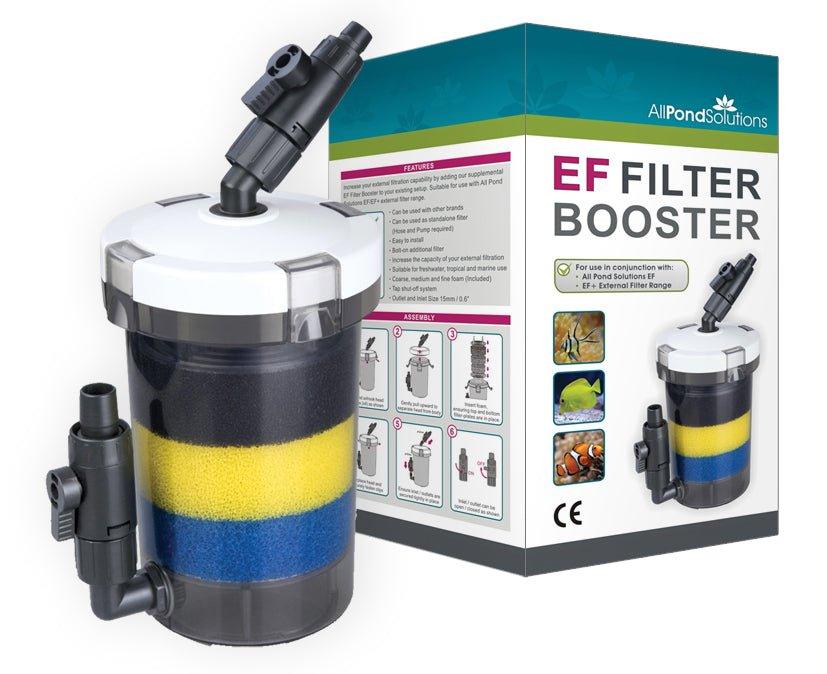

AllPondSolutions 1.2L EF External Filter Booster Canister EF-BOOSTER

Increase your external filtration capability by adding our supplemental EF Filter Booster to your existing set-up!

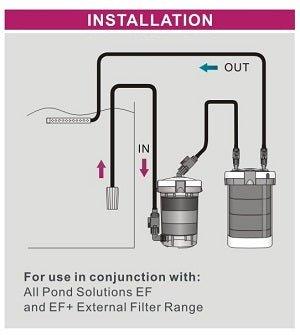

Designed for use with All Pond Solutions 1000L/H and 1400L/H EF/EF+ external filter models, the All Pond Solutions Filter Booster is also compatible with other branded filters and will fit 14-16mm size hose.

Each booster has a handy 1.2 litre capacity and is fitted with 3-stage filtration fine, medium and coarse foams.
Each outlet has a tap shut-off for easy maintenance.

The EF Filter Booster can also be used as a standalone filter, with the addition of a suitable pump*.

Features

• Easy to install
• Increases external filtration capacity
• Suitable for use as standalone filter
• Suitable for freshwater, tropical and marine use
• Supplied with fine, medium and coarse foam
• 1.2 litre capacity
• Compatible with other brands
• 14-16mm hose required
• Supplied with fine, medium and coarse foam
• Dimensions (max): 130mm Diameter x 285mm (H)
• 12 month warranty

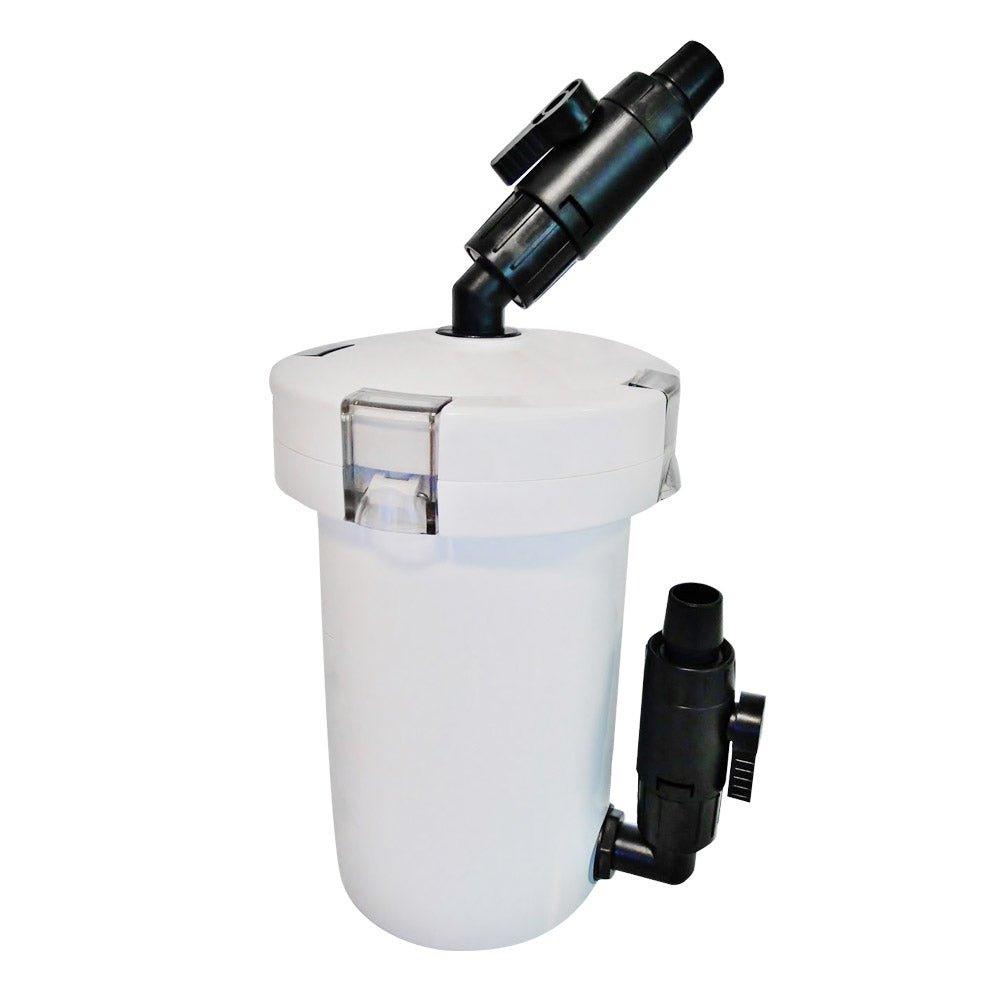

Product supplied in white canister - transparency for illustrative purposes only.
To prime successfully please ensure canister and connective pipework is filled with water prior to initial use.

*Recommended for use with aquarium pumps with 800-1600L/H output

If you are using 16mm hosing, the tap will fit without further adjustments.

In order to fit smaller size hosing (14mm), adjust the tap as follows:

1.) Image 1 below depicts the tap from the box with additional adjustment piece.

2.) Unscrew top fitting as seen in image 2 below.

3.) Remove top fitting and store with aquarium equipment spare parts in case of future use.

4.) Unscrew longer nozzle.

5.) Remove the piece unscrewed in step 4; this will expose the o-ring.

6.) Use the smaller adjustment piece to fit the smaller hosing size.
