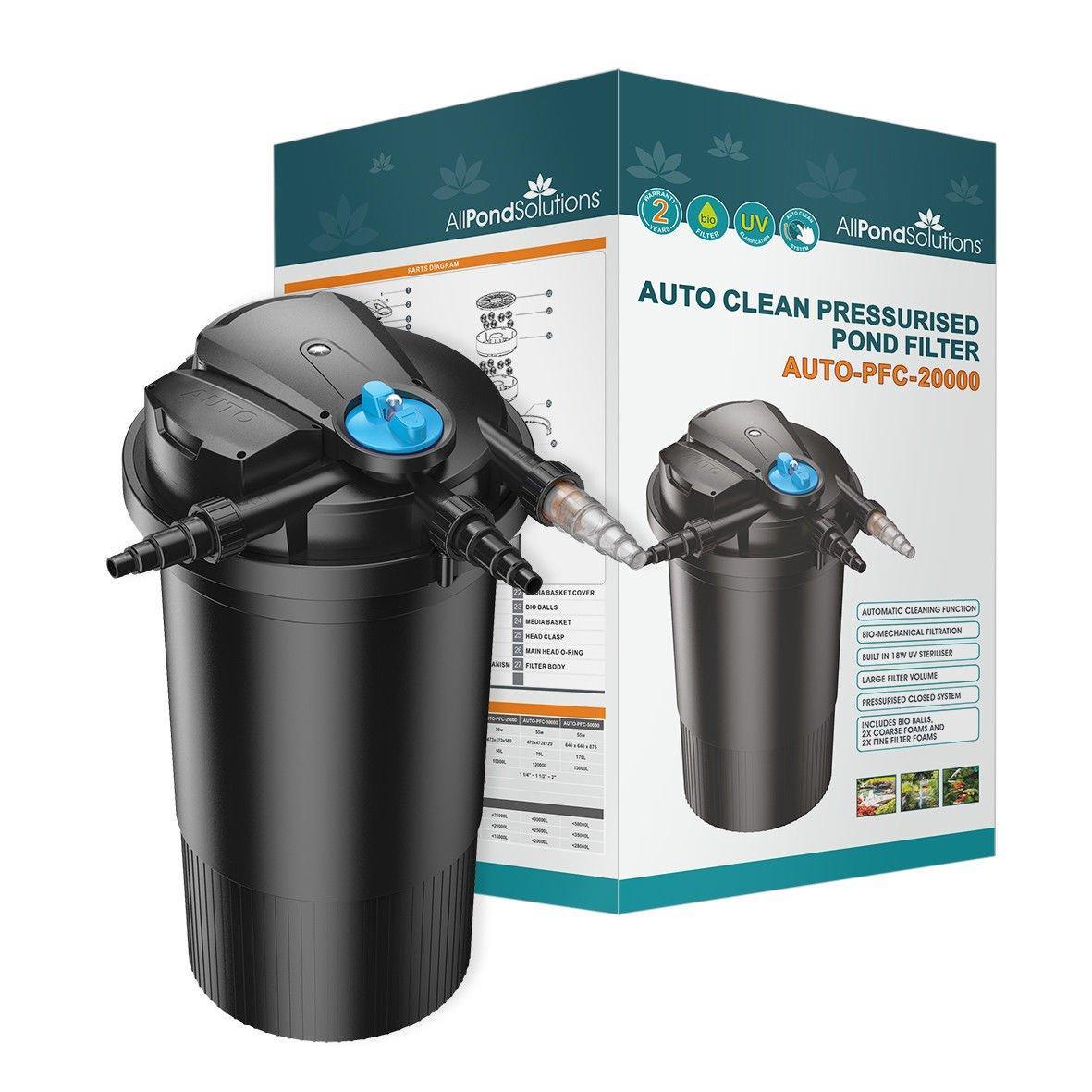

AllPondSolutions 20,000L Auto Cleaning Pressurised Pond Filter with 18W UV

AllPondSolutions range of automatic PFC pressurised pond filters with built-in UV clarifiers are designed to be efficient self-cleaning units with the simple turn of a dial. Just like the manual PFC models, auto PFC filters are kept continually pressurised by your pond pump which will help you to maintain the best water quality for healthy pond fishkeeping.

Pond filter cleaning with the auto PFC is easier than ever due to the motorised sponge cleaning system. Just turn the dial so that the blue arrow is pointing in the direction of the dirty water outlet;

listen for the beep indicating the start of the cleaning process and at the sound of the second beep your PFC pond filter unit and sponges will be clean. Not only will this reduce the need for any manual labour but there is no need to disassemble any part of the unit except when replacing foams or performing a full system clean.

Each automatic cleaning PFC pond filter is equipped with a built-in UV light, which helps prevent algae growth and eliminates micro-organisms in the pond water which can lead to fish diseases.

Specification

• Decorative Ponds: up to 20000 Litres
• Ponds with a small mix of fish: up to 12000 Litres
• Ponds with a small mix of koi: up to 10000 Litres
• Maximum Pump Flow rate: 10000L/h
• Power of UV-Clarifier: 18W
• Voltage: 220-240v
• Cable Length: 5m
• Dimensions: 380 x 380 x 740 (mm) (L x W x H)
• Filter Compartment Volume: 38 Litres
• 4 x stepped hosetails fits: 20, 25, 32 38mm
• Free 24 Month Warranty

Filtration
Water passes through the PFC-20000 in the following order:
1) Pond water flows into the PFC-20000 via your pond pump
2) Initial filtration begins by removing large particles through a mixture of coarse and fine filter foams (mechanical filtration)
3) Then the water passes across bio balls that harbour good bacteria across large surface area (biological filtration)
4) Lastly the exiting water is exposed to a 18w UV steriliser capable of reducing harmful bacteria and algae
5) Clean, clear and healthy water exits your PFC-20000 and returns to your pond.

Features

• Each unit is supplied with 7 filter foams

  4x fine yellow foams
• 3x coarse blue foams
• Includes bio-balls and cage
• Pressurised filter allows exiting water to run up-hill ‚max. 3m
• Biological and mechanical filter chambers for more efficient removal of dissolved and solid waste
• Automatic cleaning system for easy maintenance - activated by simple turn of a dial.
• Enables rapid growth of aerobic bacteria resulting in removal of lethal ammonia and nitrite
• Able to cope with higher water flows compared to traditional gravity filters
• Complete with inlet and outlet hose adapters
• Instruction manual in English, French, German, Spanish and Italian
• FREE 2 year warranty for added peace of mind.

Please note: The diagram above is only an example of the water route through the system and does not exactly match this filters features.
