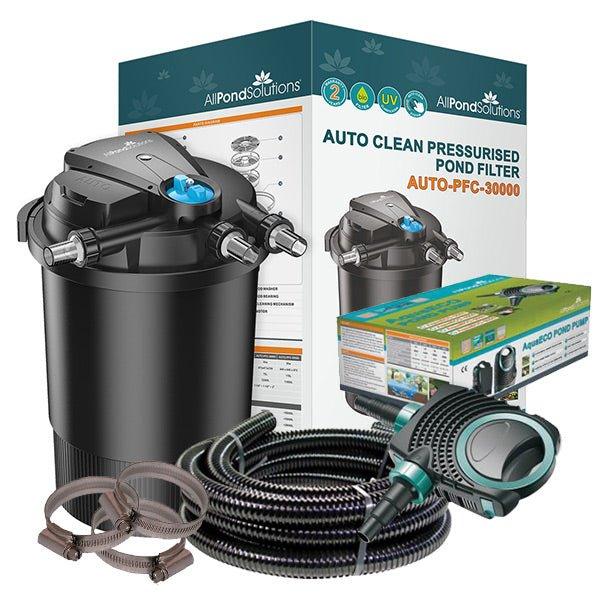

AllPondSolutions 30,000L Auto Cleaning Pressurised Pond Filter Kit with 55W UV, AquaECO-12000 Pump & Hose

AllPondSolutions range of automatic PFC pressurised pond filters with built-in UV clarifiers are designed to be efficient self-cleaning units with the simple turn of a dial. Just like the manual PFC models, auto PFC filters are kept continually pressurised by your pond pump which will help you to maintain the best water quality for healthy pond fishkeeping.

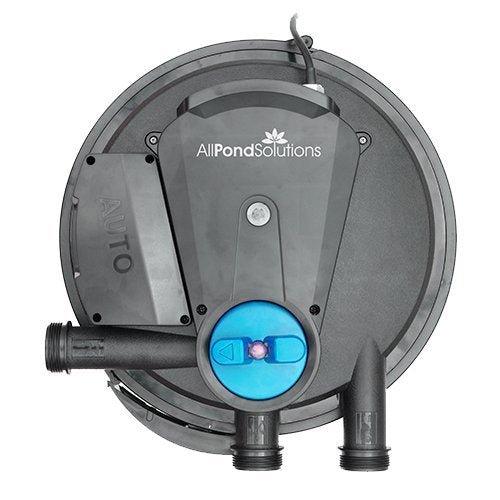

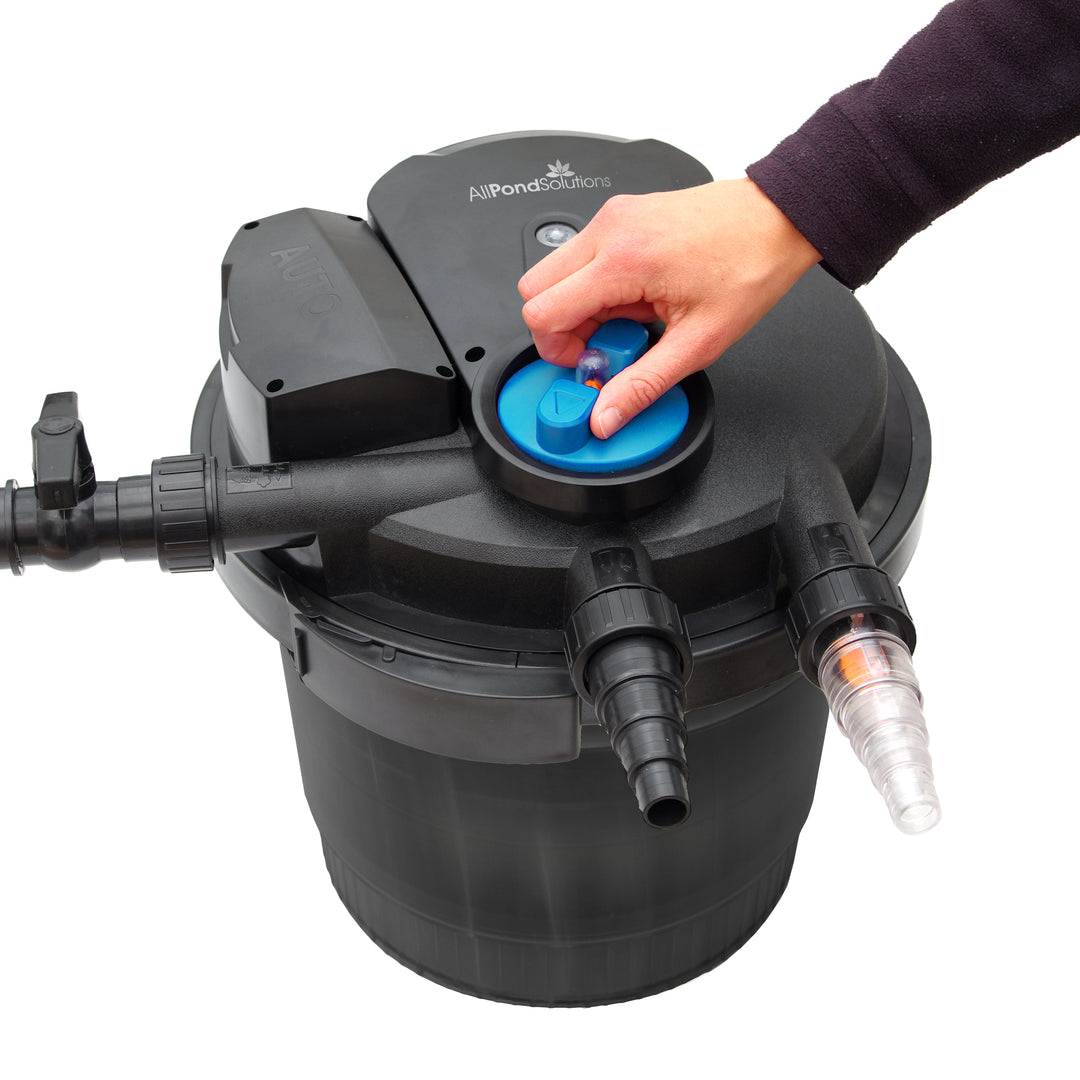

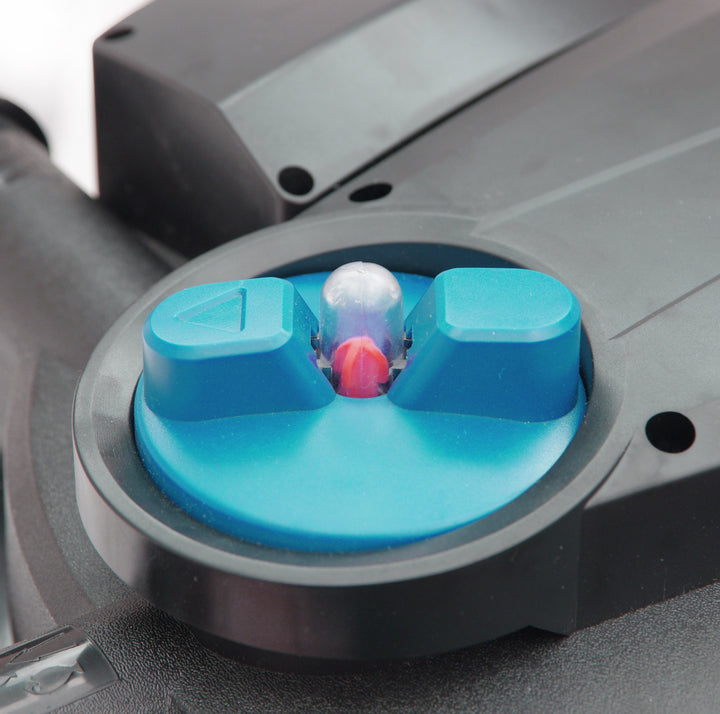

Pond filter cleaning with the auto PFC is easier than ever due to the motorised sponge cleaning system. Just turn the dial so that the blue arrow is pointing in the direction of the dirty water outlet;

listen for the beep indicating the start of the cleaning process and at the sound of the second beep your PFC pond filter unit and sponges will be clean. Not only will this reduce the need for any manual labour but there is no need to disassemble any part of the unit except when replacing foams or performing a full system clean.

Each automatic cleaning PFC pond filter is equipped with a built-in UV light, which helps prevent algae growth and eliminates micro-organisms in the pond water which can lead to fish diseases.

Specification

• Decorative Ponds: up to 30000 Litres
• Ponds with a small mix of fish: up to 25000 Litres
• Ponds with a small mix of koi: up to 20000 Litres
• Maximum Pump Flow rate: 12000L/h
• Power of UV-Clarifier: 55W
• Voltage: 220-240v
• Cable Length: 5m
• Dimensions: 450 x 450 x 715 (mm) (L x W x H)
• Filter Compartment Volume: 75 Litres
• 3 x stepped hosetails fits: 32, 38 & 50mm
• Waste tap outlet hosetail fits: 25, 32 & 38mm
• Free 24 Month Warranty
• AQUAECO-12000 Pump
• Max flow rate - 12000L/H
• Wattage: 100w
• Max head - 6.5m

Filtration

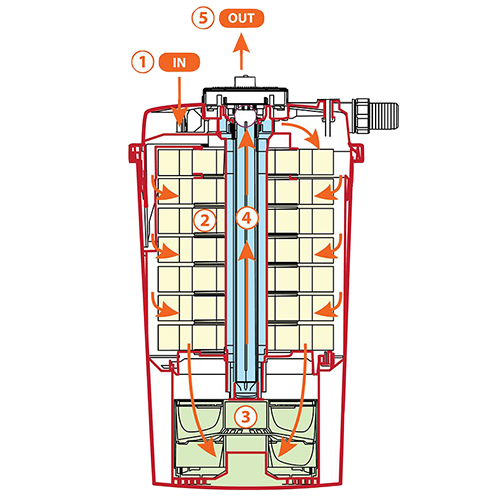

Water passes through the PFC-30000 in the following order:
1) Pond water flows into the PFC-30000 via your pond pump
2) Initial filtration begins by removing large particles through a mixture of coarse and fine filter foams (mechanical filtration)
3) Then the water passes across bio balls that harbour good bacteria across large surface area (biological filtration)
4) Lastly the exiting water is exposed to a 55w UV steriliser capable of reducing harmful bacteria and algae
5) Clean, clear and healthy water exits your PFC-30000 and returns to your pond.

Features

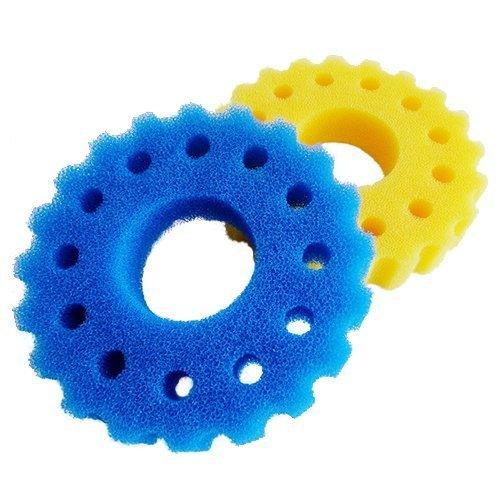

• Each unit is supplied with 7 filter foams

  4x fine yellow foams (large)
• 3x coarse blue foams (large)
• Includes bio-balls and cage
• Pressurised filter allows exiting water to run up-hill ‚max. 3m
• Biological and mechanical filter chambers for more efficient removal of dissolved and solid waste
• Automatic cleaning system for easy maintenance - activated by simple turn of a dial.
• Enables rapid growth of aerobic bacteria resulting in removal of lethal ammonia and nitrite
• Able to cope with higher water flows compared to traditional gravity filters
• Complete with inlet and outlet hose adapters
• Instruction manual in English, French, German, Spanish and Italian
• FREE 2 year warranty for added peace of mind.

AllPondSolutions AquaECO Pond Pump (AQUAECO-12000)

The new AquaECO series of pond pump's from AllPondSolutions with its brand new innovative electronics brings massive energy savings, low noise and long durability while maintaining high performance.
Compared to other pond pump brands the wattage use of the AquaECO range of pond pumps is extremely economical, saving you money in the long run.
Designed to circulate water to a pond filter or waterfall, the pumps cage is specially designed to prevent it clogging by providing the maximum surface area for drawing water in through the guard to the pump.
Included with the AquaECO pump is an additional inlet that allows you to attach hose to the inlet of the pump to provide water directly from a source such as a pond skimmer.

Pond hose and clips are supplied as follows;
PFC-30000 complete kit = 10m of durable 38mm pond hose + 5x hose clips

Please note: The diagram above is only an example of the water route through the system and does not exactly match this filters features.

Please Note : In compliance with UK electrical regulations, these pond filters are supplied without a fitted UK plug. A suitable plug or outdoor switch box must be purchased separately.
